Designing a luxury kitchen around handcrafted cabinetry often hits an unexpected obstacle when selecting ventilation. Installing an exposed stainless steel canopy can clash with custom millwork, breaking up the clean lines of your carefully chosen woodwork. At the same time, attempting to cook without high-velocity extraction leaves grease, steam, and intense cooking odors trapped directly against your cabinetry. Installing a dedicated range hood insert solves this design conflict by tucking professional-grade ventilation completely inside your custom hood canopy.
Our ventilation specialists have already guided countless Bay Area homeowners through the requirements for custom installations. Friedmans Appliance stands as the premier Bay Area appliance expert, bringing clarity to your remodel with honest advice and premium equipment. This comprehensive guide breaks down critical cabinet measurements, blower selections, and our top-performing models so you can pair high-performance airflow with stunning custom woodwork.
Upgrade Your Custom Kitchen Ventilation
Explore our premium collection of powerful built-in ventilation solutions to protect your custom cabinetry.
Key Takeaways
- Cabinet Integration: A custom liner slips completely inside decorative cabinetry to hide the mechanical blower from view.
- Proper Dimensioning: Your decorative cabinet hood is generally larger than the insert to account for internal clearances and liner flanges.
- Blower Placement: Choosing between internal, inline, or external blowers allows you to balance raw airflow power against operating noise levels.
- Code Compliance: High-powered ventilation pulling over 400 CFM often requires a dedicated make-up air damper in modern homes.
Understanding the Mechanics of a Range Hood Insert
A range hood insert serves as the mechanical engine of a custom ventilation system. Unlike standalone wall-mount or under-cabinet hoods that feature finished, decorative outer shells, an insert is engineered to be invisible. It installs directly inside an ornamental wood, plaster, or metal shroud crafted by your cabinet maker.
The unit consists of several essential mechanical components working in unison:
- A heavy-gauge stainless steel liner that shields the underside of your combustible cabinetry from open heat and rising grease.
- A motorized blower assembly that pulls airborne particles, steam, and odors upward.
- An intuitive control panel housing switches or touch interfaces for fan speeds and task lighting.
- Commercial-grade grease filters that trap atomized oils before they enter the duct run.
Standard finished hoods dictate your kitchen aesthetic through exposed metal chimneys or painted metal boxes. A cabinet insert vent hood shifts that aesthetic control entirely back to your architect or interior designer. The insert provides the raw extraction and code-compliant fire barrier, while the surrounding shroud delivers the visual statement.
How to Measure for a Built-In Vent Hood Liner
Properly sizing a custom range hood liner requires a clear understanding of cabinet construction. The most common sizing mistake homeowners make is assuming the insert dimensions must match the exterior width of the decorative hood. In practice, the custom wood hood is almost always wider than the insert it houses.
When determining what size range hood insert do I need, you must account for the thickness of the cabinet walls. For example, a 36-inch cooking surface typically pairs with a 36-inch to 42-inch custom wood hood. That structure then accommodates a 34-inch or 28-inch insert depending on the internal framing dimensions. Sizing the exterior hood three to six inches wider than your cooktop provides an expanded capture area for rising steam.
Canopy depth and mounting clearance demand equal attention during the design phase. A standard 30 inch cabinet insert or 36 inch range hood insert should cover as much of the front burners as possible, typically offering 18 to 22 inches of depth. You must mount the bottom of the liner 30 to 36 inches above the cooking surface.
The Pros and Cons of a Range Hood Insert
Choosing a range hood insert over a standard exposed stainless steel hood introduces clear design advantages alongside specific installation requirements. Evaluating these factors helps you determine if custom wood hood ventilation fits your remodel budget and architectural goals.
Pros
Design Freedom
Hiding the mechanical components behind custom paneling allows your range hood to match your cabinetry, tile, or stonework flawlessly.
High-Performance Airflow
Built-in liners easily support high-powered blowers engineered to handle high-output residential gas ranges.
Integrated Lighting
Recessed LED or halogen task lights illuminate your cooking surface without creating visual clutter.
Enhanced Property Value
Custom architectural range hoods serve as a permanent focal point that elevates the perceived quality of your entire kitchen.
Cons
Higher Project Costs
Purchasing both the mechanical insert and custom cabinetry increases total expenses compared to buying a standard pre-finished hood.
Complex Installation
Proper installation requires close coordination between your cabinet maker, electrician, and ventilation contractor.
Calculating CFM and Choosing the Right Blower
Airflow volume is measured in Cubic Feet per Minute (CFM), and your cooking equipment dictates your minimum requirement. Calculating the CFM for a gas stove involves a straightforward mathematical formula. You divide the total British Thermal Units (BTUs) of all burners combined by 100 to establish your baseline airflow need. A cooktop with four 15,000-BTU burners produces 60,000 BTUs, requiring a blower rated for at least 600 CFM.
Electric and induction cooktops do not generate open combustion byproducts, so their calculations focus on kitchen volume. A reliable CFM calculator for range hood systems multiplies room square footage by ceiling height, divides by 15, and establishes the airflow needed for eight air exchanges per hour.
Modern building codes heavily regulate indoor air quality in energy-efficient homes. When you install a blower exceeding 400 CFM, local regulations typically require an automated make-up air system. This system opens a motorized fresh-air damper to equalize indoor air pressure whenever the built-in exhaust fan runs, preventing backdrafting from water heaters or fireplaces.
Top Recommended Range Hood Inserts for Your Kitchen
Selecting the ideal built-in ventilation unit requires balancing motor placement, lighting output, and internal filter design. We have selected five exceptional models that deliver reliable smoke capture and effortless cabinet integration for custom residential projects.
Best Manto 45" Built-In Range Hood Stainless Steel
Shop this Best Built-In Range Hood
This wide 45-inch insert provides expansive capture coverage for oversized rangetops and commercial-grade burners. Built with brushed stainless steel, the unit features dishwasher-safe baffle filters that capture heavy grease while maintaining steady airflow. Bright halogen lamps illuminate your workspace clearly across multiple pots and pans. Homeowners appreciate the electronic push-button controls that make toggling through multiple extraction speeds simple. It represents an exceptional choice for spacious custom kitchens requiring reliable air clearance without distracting from custom woodwork.
Top Features
- Commercial Baffle Filters: Heavy-duty baffles separate atomized cooking oils from rising exhaust air effectively.
- Wide Capture Area: Expansive 45-inch width catches wide smoke plumes from high-output burners easily.
- Bright Halogen Lighting: Clear downward illumination provides crisp visibility across your entire cooking surface.
Best HBN65 36" Stainless Steel Insert Range Hood
Shop this Best Range Hood Insert
Engineered for clean integration, this 36-inch Best model slides effortlessly into standard custom canopies. The flush-mount design protects the surrounding cabinetry while presenting a neat, professional appearance from below. Equipped with responsive rotary controls, adjusting your ventilation power feels intuitive and precise. High-efficiency LED lighting keeps the cooktop bright while consuming minimal energy during extended prep sessions. It serves as a dependable, low-profile ventilation foundation for transitional and modern kitchen layouts alike.
Top Features
- Flush Perimeter Fit: Mounts clean and flat against the bottom edge of custom wood cabinetry.
- Rotary Speed Control: Tactile mechanical controls offer immediate adjustments without complex programming.
- Energy-Efficient LEDs: Modern lighting modules deliver crisp task illumination with minimal electrical draw.

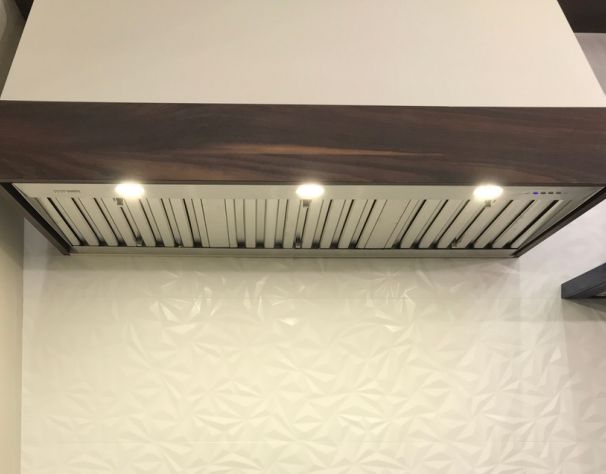

Trade-Wind VSL400 RC Designer Series 36" Stainless Steel Insert Range Hood
Shop this Trade-Wind Range Hood Insert
Trade-Wind brings commercial durability to residential spaces with this heavy-duty 36-inch designer insert. The internal 390 CFM blower runs quietly while drawing steam and airborne grease away from your front burners. Commercial-grade stainless steel baffle filters resist warping under intense heat and slide out easily for periodic cleaning. The integrated remote control allows you to adjust fan speeds and lighting from across the kitchen island. It is an ideal ventilation solution for homeowners who value rugged American craftsmanship.
Top Features
- Remote Control Operation: Manage lighting and fan speeds conveniently from anywhere in your kitchen.
- Stainless Steel Baffles: High-capacity metal filters channel grease away safely and clean up easily.
- Heavy-Gauge Construction: Durable stainless steel housing resists heat distortion from high-output cooking.
GE Profile 48" Stainless Steel Insert Range Hood
Shop this GE Profile Range Hood Insert
GE Profile combines modern smart technology with robust mechanical airflow in this 48-inch cabinet insert. The unit connects with compatible smart cooktops through Chef Connect, automatically activating the blower and task lighting whenever you turn on a burner. Triple-speed fan settings handle everything from gentle simmering to intense stir-frying with ease. The premium glass touch controls remain completely flat, allowing you to wipe away splatters with a single pass of a microfiber cloth.
Top Features
- Chef Connect Technology: Automatically syncs ventilation and surface lighting with your compatible cooktop.
- Glass Touch Controls: Clean, modern interface wipes down effortlessly without knobs collecting grease.
- Dimmable LED Lighting: Adjust task illumination from bright prep light down to a gentle ambient nightlight.
Thermador Professional 60" Stainless Steel Insert Range Hood
Shop this Thermador Range Hood Insert
Designed to anchor massive culinary workstations, this towering 60-inch Thermador Professional insert handles extreme thermal loads effortlessly. The heavy-duty commercial canopy pairs with your choice of internal, inline, or remote blowers to clear air across wide dual-fuel ranges. Dishwasher-safe stainless steel baffles provide superior filtration efficiency during high-heat searing. An automatic thermal shutoff sensor detects excessive heat buildup and ramps the blower to maximum speed to protect your cabinetry. It represents the gold standard for dedicated home chefs building an uncompromising kitchen.
Top Features
- Massive 60-Inch Coverage: Spans expansive commercial cooking ranges to trap smoke across multiple cooking zones.
- Automatic Thermal Sensor: Automatically increases fan speed when internal sensors detect excessive cooktop heat.
- Flexible Blower Options: Supports internal, inline, and external blower configurations to match your ducting needs.
Complete Your Custom Kitchen With a Range Hood Insert
Achieving a high-end culinary space requires balancing precise cabinet measurements, calculating the proper CFM for your stove, and selecting the right blower location to minimize noise. A properly chosen liner protects your custom millwork while keeping your home smelling clean and fresh after every meal.
Stop by Friedmans Appliance to explore our extensive collection of built-in ventilation and find the ideal match for your custom woodwork. Our family-owned business has served the Bay Area since 1922, offering our exclusive 100-day price guarantee, knowledgeable staff at our Pleasant Hill showroom, and dependable Northern California delivery that large corporate retailers cannot match.
Range Hood Insert FAQs
You typically need a 28-inch to 34-inch range hood insert for a 36-inch wood hood to accommodate internal cabinet framing. The outer decorative enclosure must have sufficient wall thickness and internal clearance to secure the stainless steel liner safely.
You can use a ductless range hood insert over a gas stove only if local building codes permit recirculating ventilation for gas appliances. However, exterior venting is strongly recommended because charcoal filters cannot remove dangerous combustion gases or heavy cooking moisture.
An inline blower installs further down the ductwork in an attic or crawlspace, whereas an internal blower sits directly inside the range hood insert over your stove. Placing the motor remotely with an inline blower significantly reduces operating noise in your kitchen.
A range hood insert should be mounted between 30 and 36 inches above the cooking surface for safe and effective operation. Mounting lower than 30 inches risks heat damage to internal components, while mounting higher than 36 inches allows smoke to escape.
Stainless steel baffle filters are significantly better than aluminum mesh filters for high-heat cooking because they capture heavier grease loads without restricting airflow. Baffle filters also provide a superior fire barrier and hold up better to frequent dishwasher cycles.
You generally need a make-up air system if your range hood insert uses a blower rated above 400 CFM. Modern building codes require these systems to prevent dangerous depressurization in tightly sealed, energy-efficient homes.
